Extruded Aluminum Square & Rectangular Tube
Square and rectangular tubing aluminum extrusions
Zhongpeng supplies reliable extruded aluminum square and rectangular tubes manufactured from 6000-series aluminum alloys (6060, 6061, 6063, 6082). These extruded aluminum square and rectangular tubes exhibit corrosion resistance and can be cut to specified lengths according to customer requirements. The tubes are widely applied in industrial machinery, construction projects, automotive components, LED enclosures, heat sinks, and solar energy systems.
A variety of surface finishing options, including anodizing and powder coating, are available to enhance durability and appearance. The broad selection of sizes ensures secure assembly and dimensional compatibility, meeting diverse application demands.
Request a Quote
Available Sizes

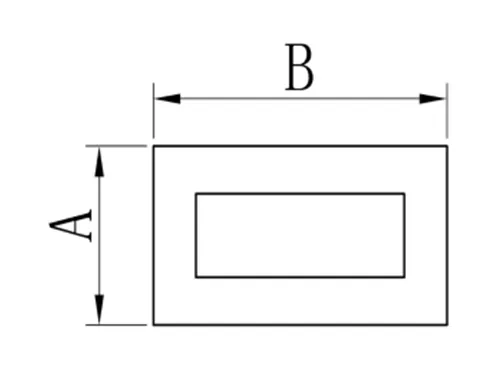

| Product No. | Width A (mm) | Length B (mm) | Thickness (mm) | Weight (kg/m) | Extrusion Press Capacity | Alloy & Temper |
| ZWJ-FX-F015 | 5 | 10 | 0.8 | 0.058 | 500T | 6063-T5 |
| ZW_D030736 | 10 | 10 | 1 | 0.097 | 500T | 6060 T66 |
| ZW_D030737 | 10 | 10 | 1.5 | 0.138 | 500T | 6060 T66 |
| TP-2319 | 12 | 12 | 1 | 0.119 | 500T | 6063-T5 |
| ZWGYC-2964 | 10 | 12.6 | A=1/B=1.5 | 0.14 | 500T | 6082 |
| ZW_D010650 | 12.7 | 12.7 | 1.27 | 0.157 | 500T | 6063-T5 |
| ZW_D051179 | 12.7 | 12.7 | 1.32 | 0.162 | 500T | 6063-T6 |
| SOMA_A000804 | 15 | 15 | 1 | 0.151 | 500T | 6060-T6 |
| CHD_A000683 | 15 | 15 | 1.5 | 0.219 | 500T | 6060-T66 |
| SOMA_A000483 | 15 | 15 | 2 | 0.281 | 500T | 6060-T66 |
| ZWGYC-2965 | 13.5 | 15.2 | A=1/B=1.5 | 0.18 | 500T | 6082 |
| ZW_D031764 | 15.49 | 15.49 | 1.27 | 0.194 | 500T | 6063-T5 |
| TF-223 | 10 | 16 | 1.2 | 0.153 | 500T | 6063 |
| ZWGYC-4218 | 12.5 | 16 | A=1.2/B=3 | 0.303 | 660T | 6063-T5 |
| TF-224 | 16 | 16 | 1.5 | 0.235 | 500T | 6063-T5 |
| ZWQC-HGDC-491 | 16 | 16.5 | 2.5 | 0.371 | 660T | 6061-T6 |
| XSS-414 | 12 | 18 | 1 | 0.149 | 500T | 6063-T5 |
| ZW_D051181 | 12 | 18 | 1.2 | 0.179 | 500T | 6063-T6 |
Material Selection Guide
| Alloy |
Key Properties |
Typical Applications |
| 6060 Aluminum Tube |
Weather resistance,machinability,dimensional stability |
Solar panel supports,mounting frames,lightweight structures |
| 6061 Aluminum Tube |
Durability,corrosion resistance,lightweight,weldability |
Industrial equipment frames,automotive components,structural supports |
| 6063 Aluminum Tube |
Weather resistance,smooth surface finish,high extrudability |
Curtain walls,handrails,balcony structures,interior trim,LED housings,heat sinks |
| 6082 Aluminum Tube |
Durability,corrosion resistance,suitable for heavy-duty structures |
Industrial machinery,marine structures,heavy frameworks |
How to choose between square and rectangular tube
The square tube is ideal for machine frames, guards and support with symmetrical load distribution and standardized connection.
The rectangular tube can be configured to improve the load distribution and is widely used in vehicle frames, door frames, window frames, beams, and other structural components.
When selecting a tube, you should not only consider overall dimensions, but also take into account alloy, temper, wall thickness, corner radius, length, dimensional tolerance, load direction, welding method and environment.
Applications
The extruded aluminum square and rectangular tubes can be used for industrial machine frames, machine guards, robot safety fencing, guardrails, components of conveyors and worktables, frames for doors, windows, furniture and curtain walls, enclosures for electronics, and display stands.
The requirements of strength, surface treatment, dimensional accuracy, corrosion resistance may vary across different applications. We provide assistance in selecting suitable alloy, temper and cross sections according to environment, structural requirements and secondary processing.
